8.2 DESIGNING INFRASTRUCTURE TO ENCOURAGE SAFE BEHAVIOUR

THE BASICS: ROAD USER CAPACITIES AND BEHAVIOURS ACCORDING TO HUMAN FACTORS NEEDS

The demand of self-explaining design of Human-Machine Interfaces has produced a revolution in operating computers, machines and phones. The principles of an intuitive design that suggests users can use their mobiles or tablets reliably without further instruction are nowadays very common. In analogy to that, a self-explaining road design should be as intuitive as possible for the road user so that danger symbols, prohibition and requirement signs are not required any more in the Man-Road Interface. So, it is not only important to build up a clear system of road categories to inform the driver about the appropriate speed or to set speed limits. A road's Gestalt should also provide a clear impression of how to drive and it should pre-program driver’s expectations so that they are never surprised or encouraged to take any risk. The information presented below are findings from Germany from 1,400 crash locations. This study found the following three human factors elements essential for self-explaining roads.

REQUIREMENT NO.1: GIVE ROAD USERS ENOUGH TIME

The time it takes an average driver to adapt from one traffic situation to the next, or to adjust to new requirements, is much longer than what is stated in many current guidelines. Because humans are not constantly alert and searching for new information, they need more time. This is especially true when information is difficult to find or is unusual, or when the driver is confronted with complex decisions, or when unusual manoeuvres are required. Instead of one or two second (simple ‘stimulus-reaction time’) it takes the average driver at minimum 4-6 seconds to adapt to a new driving requirement (‘anticipation-response time’ – PIARC, 2012b). Providing the driver with more time to perceive, decide and respond to the road and conditions is one of the most important means to improve safety. At 100 km/h, the distance covered before the vehicle can be brought to a complete stop is up to 300 m, considering the entire braking distance (note that this may take longer if braking is slow due to a wet road or other circumstances).

A user-friendly road will give drivers the necessary time to adapt to new and unexpected situations. It will give them the time they need to safely reorganise their driving program. That is why it is not enough to provide the driver with a reaction time of 2-3 seconds (Stopping Sight Distance, SSD, with manoeuvre section and response section). The design should also provide an anticipation section with a minimum 2-3 seconds to identify an unexpected or unusual situation with more complex decision demands (Decision Sight Distance, DSD). In situations that are more complex or involve higher speeds, it is recommended to have an advance warning section with proper signing and instructions.

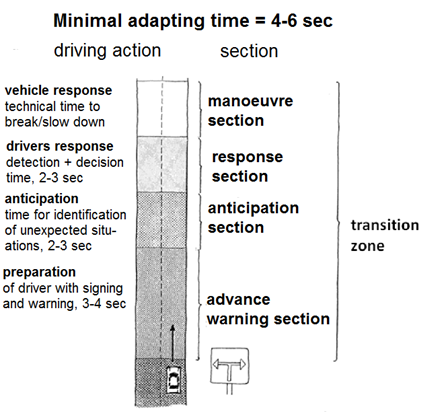

A driver changes the driving programme in three easily distinguishable, consecutive logical phases:

1. Anticipation: Identification of the critical location. The critical location is any requirement to adapt the driving programme.
2. Response (detection, decision): Detection of the precise kind of the required driving action (steering, braking, acceleration, etc.). Decision for the appropriate driving programme. Start of the new driving programme (‘change’). Checking, testing and correction of the driving action.
3. Manoeuvre: Technical time to brake / slow down (it depends on the vehicle’s technical condition, weather and interaction between vehicle and road).

Since the process may take up to 6 seconds, the necessary change in the driving programme has to be conveyed to the driver 6 seconds ahead to the critical location.

Frequent critical locations requiring an adaptation of the driving programme are:

• Junctions or crossings, e.g. crossings with/without traffic signals (railway, bicycles, pedestrians).
• Access from private streets/parking places/ farm tracks to main roads.
• Road curves.
• Cross section narrowing (e.g. at road works or narrow bridges).
• Lane losses/merges.
• Bus/tram stops.
• Motorway entrances/exits.
• Entrances to towns/villages.
• Changes from a mono-functional road to a road with several mixed functions.
• Etc.

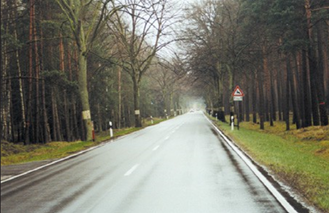

FIGURE 8.8: EXAMPLE – BAD TRANSITION INTERSECTION IN HORIZONTAL CURVE (SOURCE: BIRTH, 2000)		FIGURE 8.9: EXAMPLE – BAD TRANSITION INTERSECTION IN HORIZONTAL CURVE SOURCE: SPORBECK ET AL., 2002)
The main road seems to continue straight ahead but it veers to the left 300m ahead. There is a minor road in the continuity of the main road. Recommendations: Accentuate the outside of horizontal curve (trim trees, delineation, marking). Improve visibility of curve warning signs. Use road bumps, special road surface (colour, material) or marking to reduce speed.		Due to the presence of an intersection, the main road seems to go straight ahead. Drivers are not prepared to change direction. After Intersection has been moved away from the curve. Embankment and tree have been added to hide the previous alignment.

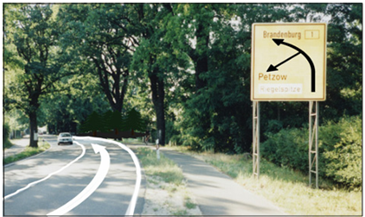

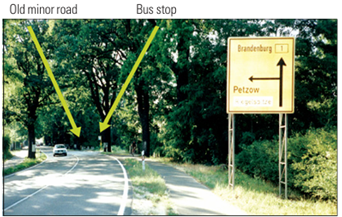

Before		After
Road sign is not coherent with road alignment. The presence of a minor road suggests a straight alignment. A bus stop is located in the curve area.		The road sign has been modified. The minor road has been hidden by shrubs. The bus stop has been moved out of the curve. Marking has been improved.

FIGURE 8.10: EXAMPLE - BAD TRANSITION AT HORIZONTAL CURVE (SOURCE: BIRTH, 2000)

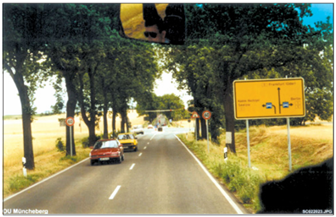

Drivers who travel on this minor road do not expect to have to stop at an intersection because: The intersection itself and the intersection warning sign are hidden by trees (only visible 50m away from intersection). The intersection sign suggests that the driver is on the main road.		Before After The intersection road sign has been improved to clearly show road users that they are on a minor approach to an intersection. Distinctive road surface material, marking and plantation at intersection should be used to reinforce the presence of the intersection. Photo by Steffen Wenk, MIL Brandenburg, Germany
FIGURE 8.11: EXAMPLE – IMPROVEMENT AT THE APPROACH TO AN INTERSECTION (SOURCE: SPORBECK ET AL., 2002)

The usual ways to avoid critical situations in practice are to:

• Eliminate the problem by providing an unobstructed view of the critical locations. Remove visual obstacles such as crests, curves, vegetation and buildings prior to critical locations. If useful, construct well detectable traffic islands.
• Reduce the problem by implementing treatment that guide a driver's attention directly to the critical driving demand (if the problem cannot be eliminated). Use attention guiding clues such as coloured road surfaces, pavement markings, and other advisory treatments.
• Minimise the problem, if attention cannot be drawn to the critical point warn road users by installing traffic control devices such as speed limits, pedestrian crossing facilities, road markings or signs to prevent overtaking.

Additional good solutions and best practice examples can be found in the PIARC Report ‘Human Factors in Road Design. Review of Design Standards in Nine Countries’ (PIARC, 2012b).

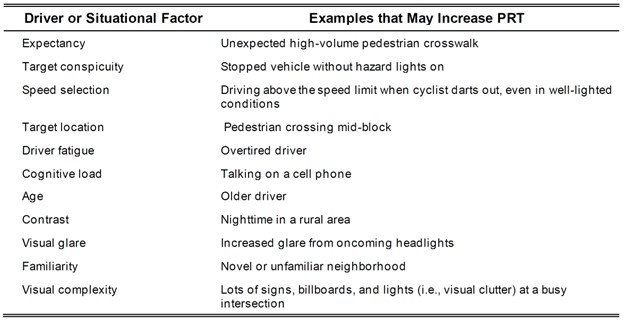

It is important to recognise the factors that may affect the driver's ability to anticipate, perceive and react to given situations and conditions. TABLE 8.1 provides examples of driver and situational/environmental conditions that can influence ability to perceive and react to a condition, which highlights the importance of the six second requirement.

The NCHRP report ‘Human Factors Guidelines for Road Systems’ (HFGRS) (National Academies, 2012) note that expectancy, conspicuity, and speed are notable factors in perception reaction.

Expectancy is important to driver response when a road is self-explaining, the driver knows what to expect from the road, and sudden changes are reduced. Sudden changes require extra processing time (e.g., sudden curves, high volume pedestrian crossings, significant speed reductions). A designer should take time to consider what the driver is expecting to see given the past experience and adjust or inform accordingly.

Conspicuity or the ability to be seen or noticed is an important concept in road design and operation. A conspicuous object is one that the driver can detect. Failure in detection leads to crashes. Issues that reduce conspicuity to drivers include objects that are off-axis or not in the driver's line of sight, or cone of view. Items that blend in with their background or have diminished contrast make them difficulty to identify. The size of the object, such as those objects that are very small or very similar to their surrounding items can create challenges as they become camouflaged. In some locations, visual clutter, such as multiple signs, messages, confusing information or complexity are influencers, particularly at locations requiring multiple decisions, such as intersections, interchanges or curves.

Speed is important. As has been suggested earlier, the faster one is driving, the further they travel in a shorter timeframe before encountering a decision point or object. While speeds influence driver speed choice, other important infrastructure elements (e.g., shoulders, lane widths, vegetation, roundabouts, and curvature) can influence driver speed choice. Drivers will view the speedometer but use other visual, auditory and tactile stimuli to select speeds. Drivers use perceptual and message cues to select speeds. Drivers can also misjudge speeds in some environment such as rural environments without trees or entering into a lower speed environment after travelling many kilometres on a high-speed environment such as rural to suburban transition zones.

REQUIREMENT NO.2: THE ROAD MUST PROVIDE A SAFE FIELD OF VIEW

Monotonous, clouded, deceptive or distracting impressions affect the quality of driving. The road, together with its surrounding field, offers an integrated field of view. This can either stabilise or destabilise the driver; it can tire or stimulate them. It can also result in either increased or reduced speed. Speed, lane-keeping and reliability of direction are functions of the quality of the field of view.

A user-friendly road will give drivers a well-designed field of view with sufficient contrasts to increase alertness. It will provide good optical guiding and orienting facilities with symmetrical and orthogonal impression.

A good-quality field of view safeguards the driver and keeps him from drifting to the edge of the lane or even leaving it. Misleading eye-catching objects in the periphery of the field of view activate subconscious changes in direction. The most serious consequences arise from eye-catching objects that differ from the road axis. These lead in extreme cases to a horizontal swing of the complete field of view. The driver has the feeling that the road and its surroundings are moving while he is in an unmoved position. Such objects lead to gross mistakes in steering. At minimum they lead to disturbances in lane-keeping, though these can mostly be corrected (for this reason billboards near interurban roads that catch driver’s attention to a wrong direction should be forbidden like in Germany and on Italian motorways).

An experienced and Human Factors trained designer will avoid monotony in curvature and visual appearance. They will avoid optical illusions or misleading objects that destabilise drivers and negatively impact their driving and will take advantage of the optical perception to influence the driver's choice of speed.

Factors that are forming a safe field of view include the following characteristics:

a) Density of the field of view

The amount of information also influences driver’s speed. The term used for this is density of the field of view. It is a function of the number of objects that contrast with the background. The presence of very few contrasting objects leads to monotony as well as reduced performance and reactivity. To avoid monotony the driver subconsciously changes his driving activities in order to increase information input: he swerves, brakes or – in most cases – increases speed. Consequently, it is desirable to achieve an optimal level of brightness and colour-contrast (optical density) to support the correct choice of speed. That is why efficient speed management relies on changing brightness and colour-contrasts to avoid subconscious speeding up.

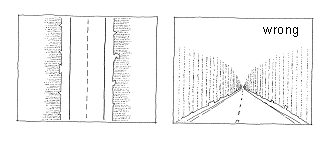

The convergence of orientation lines leads to incorrect estimations of object sizes such as lane width (Figure 8.13).

Hering illusion	Müller-Lyer illusion	The Ponzo illusion

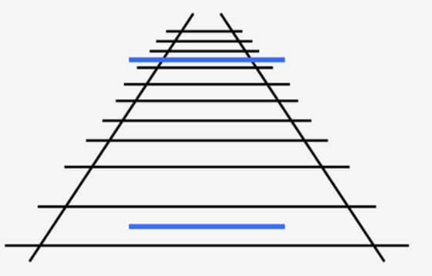

FIGURE 8.13: OPTICAL ILLUSIONS - LANE WIDTH (SOURCE: GOLDSTEIN, 1997)

b) Lateral space structure

It is proven, that the lateral field of view and its information provide the most important information to master the difficult task to hold balance on the road like on a balance beam.

If designers fail to take this fact into account, they may not make the right prediction about how the finished design will influence lane-keeping. To hold balance on the road (as on the balance beam) drivers need a clear orthogonal orientation out of objects in their periphery.

Orthogonal objects or structures calibrate the equilibrioception of road users that is needed for lane-tracking. Equilibrioception is the perception of the position of an organism in the space with the help of the eyes (visual system), ears (vestibular system) and the body's sense of where it is in space (proprioception). Structures over the road like bridges, advertising, signalling and toll facilities should be symmetrical, of equal height, and the angle of skew to the own road should be less than 15° from perpendicular.

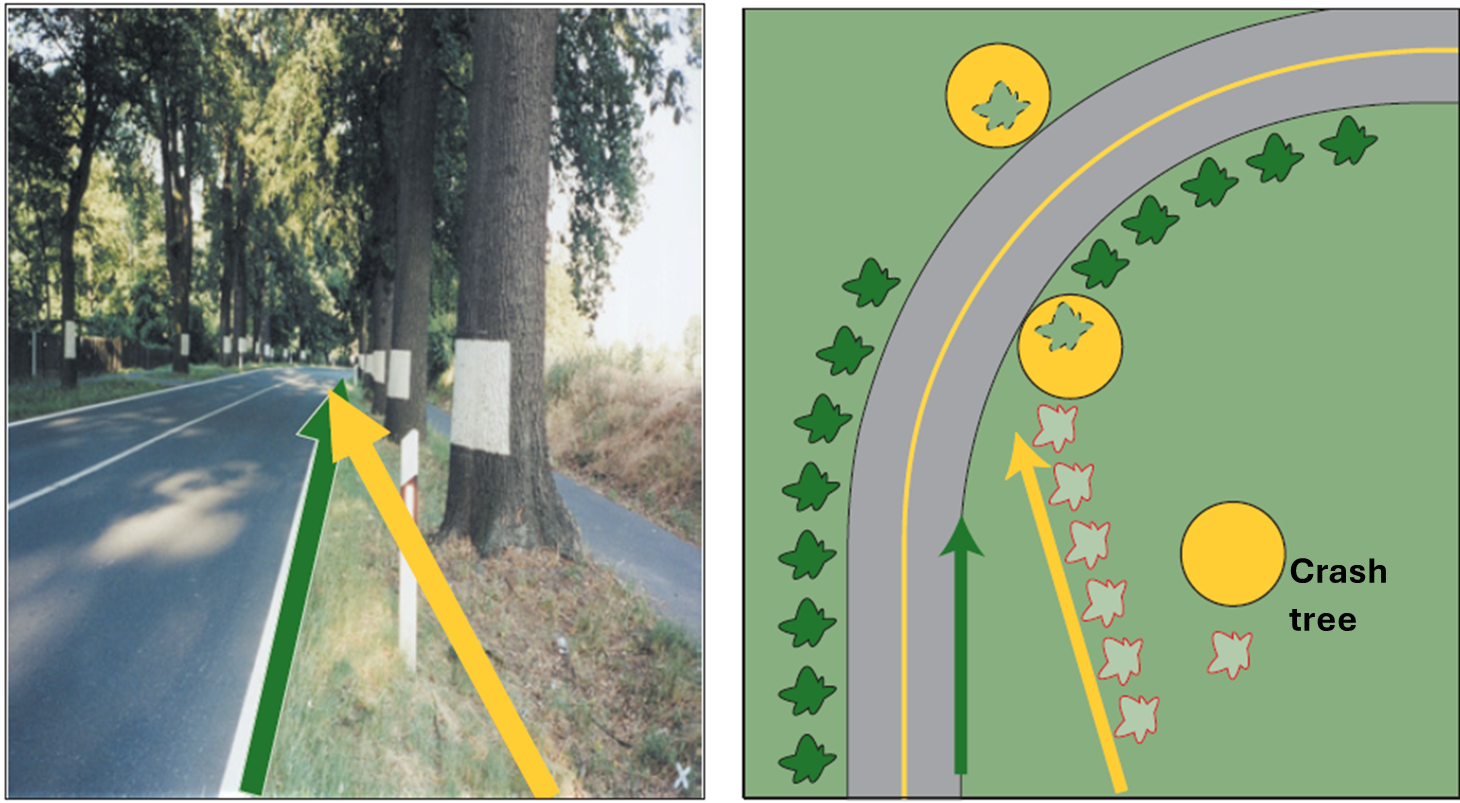

It was found at crash scenes that asymmetrical posts of a bridge or pitched bridges/advertisements confuse and disorientate drivers with regard to lane-keeping and result in run-off-road crashes.

Driving reliably through a curve also critically depends on the quality of the field of view and a clear distinguishable Gestalt of the curve. Best driving results are achieved when the driver has an unobstructed view over the inner curve and the outer curve has a closed optical framing that provides with its Gestalt a clear instruction that there is a curve at all. It provides also clear information about the sharpness of the curve.

c) Depth of the field of view

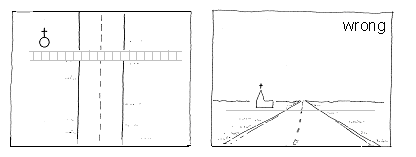

The driver orientates themselves in the environment that surrounds them. To estimate their position relative to the road and to their surrounding and to other drivers, they depend on their changes of position, the changing view axis and the changing points/lines of reference in the environment. The most serious consequences arise from eye-catching objects that differ from the road axis. These lead in extreme cases to a horizontal swing of the complete field of view.

All lateral orientation clues should be parallel to the road edge, regularly spaced and equally sized to stabilise lane-tracking. This is important for markings, hard shoulders, side strips, safety barriers, snow and wildlife fences, plantings, bicycle ridings and rescue paths and also for public maintenance roads. It was found at high risk locations that non-parallel orientation lines lead to the impression of prolonged (if lines are converging) or shortened (if lines are diverging) distances up to critical locations. Optical illusions cause subconscious swerving, sudden driving manoeuvres and technically ‘unexplainable’ run-of road crashes. The word illusion comes from the Latin verb illudere, meaning ‘to mock’. Illusions are the result of the complex information processing of the brain and the visual system that tricks us into perceiving something as different from what it actually is. Thus, what we see does not correspond to physical reality.

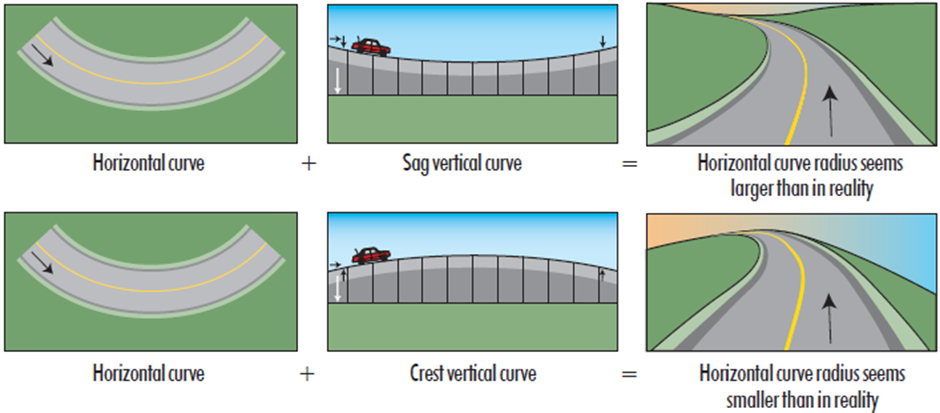

The combination of a horizontal curve with a vertical sag curve suggests a wider horizontal curve radius than in reality. Drivers who prepare to steer for a wider curve suddenly have to slow down and correct their steering when approaching the curve. This is a crash-prone situation that should be avoided.

Conversely, the combination of a horizontal curve with a vertical crest curve suggests a narrower radius than in reality. This situation is much safer compared to the previous (Figure 8.17).

These mistakes can be addressed by the following measures:

• Eliminate the problem by redesigning the road and its field of view: create sinuous ‘rhythmic’ road alignment against monotony; create symmetry of superstructures by constructive measures, etc.
• Correct the field of view (if the problem cannot be eliminated), e.g. by the use attention guiding eye-catching objects along the view axis, cover eye-catching objects that differ from the road axis, create a complete framing of outer curves, avoid visibility barriers in inner curves, cover non-parallel optical guiding lines that lead to optical illusions, etc.
• Minimise the risk by warning road users (if satisfactory correction cannot be achieved) by installing traffic control devices such as speed limits, prohibiting overtaking or pedestrian crossing facilities.

Additional good solutions and best practice examples can be found in the PIARC’s Report (PIARC, 2012b) ‘Human Factors in Road Design. Review of Design Standards in nine Countries’.

d) Focus, peripheral vision

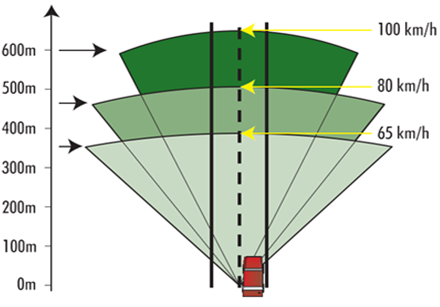

There is a relationship between the focus distance and speed (Figure 8.18). When speeds need to be kept low (e.g. residential areas), roads should be designed to avoid long focus distances (Figure 8.20).

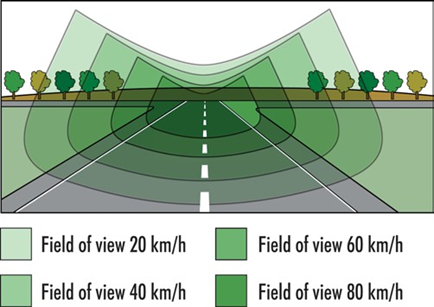

The faster the speed, the narrower is the field of view (Figure 8.19). This should be taken into consideration when choosing the lateral offset distance of road signs. However, road designers should make sure that road sign poles do not become in themselves a road hazard.

FIGURE 8.18: SPEED AND FOCUS POINT (SOURCE: COHEN, 1984)		FIGURE 8.19: SPEED AND PERIPHERAL VISION (SOURCE: LEUTZBACH & PAPAVASILIOU,1988)

The longer a straight-ahead section of a road is, the farer the driver will have his fixation location on the horizon. The automatic effect of that condition is a subconscious speeding up. That is why a Human Factors experienced designer will limit the length of straight sections especially before intersections or other critical locations, to avoid subconscious speeding up.

Before A combination of a poorly visible intersection with a straight alignment (long focus distance) contributes to increase operating speeds. Several crashes occurred in the vicinity of the intersection.

After Delineation, marking and road surface treatment have been used to reduce focal distance and operating speeds and increase the visibility of the intersection.

FIGURE 8.20: REDUCTION OF FOCUS DISTANCES (SOURCE: BIRTH, 2000)

The width of a driver’s field of view is influenced by the driving experience and the nature of the road environment (urban or rural, Table 8.2).

Optimum angles of view are:

• Vertically: 20° up and 60° down.
• Horizontally: 15-20°.

A measure that can be used to improve the optical density of the field of view is to interrupt the unobstructed overview to the horizon in long straight road sections and create fixation points that guide drivers’ attention:

• Use varying pavement types or colours.

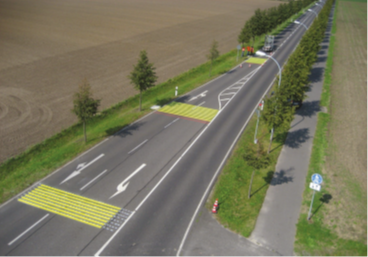

• Apply coloured signs or graphics on the pavement (Figure 8.21).
• Plant diversified vegetation alongside the road.
• Use reflecting markings, signs, etc.
• Create artificial bottlenecks or use roundabouts.
• Use fixation points along the view axis of the driver (reflecting safety barriers, signs, artwork, etc.).
• Structure the roadside with light in different colours, brightness, or with several eye-catching objects.

REQUIREMENT NO.3: THE ROAD ENVIRONMENT MUST CORRESPOND WITH THE ROAD USERS’ PERCEPTION LOGIC

Drivers follow the road with an expectation and orientation logic formed by their experience and recent perceptions. These affect their actual perception and reactions.

The same principle applies when climbing stairs. After only a few steps the motion balance adjusts to the sequence of steps just perceived. In most cases, this is a subconscious process. However, if one step is of a different height, the motion balance will become considerably disordered - possibly resulting in a stumble or fall. Adjustment of driving programme on the road is similarly subconscious.

The perception of the lane, the edge of the lane and the lane periphery produces a general sensual impression. Drivers react to these road elements with their actions, in the same way as the person climbing stairs reacts intuitively to the height, depth and width of the steps. Unexpected objects disturb the automatic sequence of operations, possibly causing the driver to ‘stumble’. After several critical seconds the disturbance can be handled. Therefore, planners and designers try to keep road characteristics flowing in a logical sequence. They should introduce inevitable changes as early and clearly as possible and exclude any sudden changes that would confuse the driver.

When choosing their speed, drivers rely on their previous and recent sensory impressions of the last driven 5-10 minutes. Breaking the consistency and the experienced logic of the design causes operational mistakes which can lead to driving mistakes and road crashes.

This particularly applies to five situations:

a) Change of road function without corresponding change in design and optical characteristics (e.g. town entrance)

Drivers need to adapt their driving programme when entering a built-up urban area or when road functions change significantly. They need to decrease speed and be more attentive as more decisions and reactions are required. Generally, there should be offered unambiguous visual clues to recognize the change of function, for instance by a horizontal swing of road’s course, optical sight barriers, planted central islands, special speed-reducing markings or a combination of these instructions. A clear guiding Gestalt has to instruct the driver on how to adapt the driving programme.

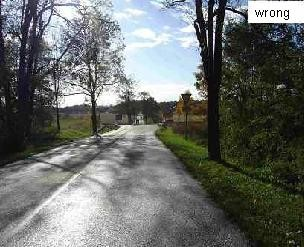

b) Change of road’s direction is contrary to eye-catching objects in another direction (e.g. city by-pass dilemma)

Drivers need eye-catching objects to realize that there is a change in road's direction despite other dominant eye-catching orientation structures or objects. The change of direction has to be supported by covering the wrong view axis or optical misguiding.

It has been found at high risk locations that dominant eye-catching objects such as a line of trees, buildings or straight road sections impede the correct anticipation of a road’s course even though correct signing is present. Road characteristics that mislead spatial perception cause technically ‘unexplainable’ crashes.

c) Requirement for a new driving program recognised and changes are introduced to ‘re-programme’ driving habits and expectations.

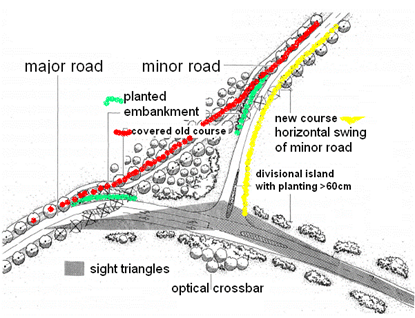

Changing the right-of-way or altering the course of the road - such as a new alignment will challenge driver’s habits and expectations. Appropriate and timely signals or visual clues are required to inform the driver and provide an adequate time for correct anticipation. The required reaction could be significantly different from the habitual one! In order to avoid surprises, various design principles need to be considered.

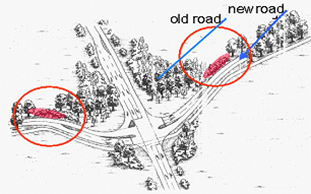

It has been found at high-risk locations that newly built intersections that are not introduced properly lead to incorrect anticipation of the situation and therefore to crashes even though correct signing is present.

d) Driver's attention and ability to process information is limited

Driver’s attention and ability to process information is limited. Driving requires multiple tasks, such as control of lane tracking, anticipation and orientation as well as navigation. Drivers can focus on one piece of information at a time and multiple distractions, or critical locations may result in an overload.

Too many decisions in too short time can overload the capacity for information processing and result in safety risks.

e) Deficiencies in traffic control devices

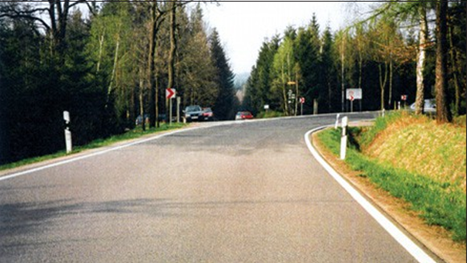

Due to higher traffic volumes, roads need to be equipped with traffic control devices for safety. Along with rules, traffic control devices organise the driving reactions of road users. Under all light conditions and within all optical backgrounds, traffic signs should be visible, legible and detectable. They should never be covered by plantings or other structures. That is because the effect of mimesis may make even bright, oversized signs invisible to the driver. Mimesis, also mimicry is the ability of organisms to adapt their coats/skin completely to their background so that they can't be detected.

Before Insufficient contrast between curve signs and background.		After Sign visibility has been increased by providing a yellow frame.
FIGURE 8.29: IMPROVEMENT TO READ SIGN CONTRAST (SOURCE: FHWA, 2016)

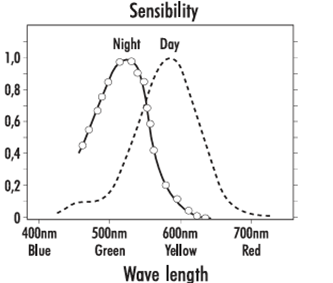

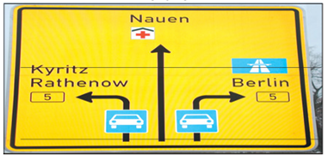

FIGURE 8.30: ROAD SIGN – GERMAN FREEWAY (SOURCE: VSVI) The combination of blue and white on road signs is easy to detect in daytime and nighttime.		FIGURE 8.31: COLOR SENSIBILITY (DAY AND NIGHT) (SOURCE: GOLDSTEIN, 1997) At night, blue and green colours are easier to detect than red.

Additional good solutions and best practice examples can be found in the PIARC’s Report ‘Human Factors in Road Design. Review of Design Standards in Nine Countries’ (PIARC, 2012b).

Traffic control devices need to be placed to clearly indicate necessary action. Failures in placement and changing messaging can create failures in selection and ultimately lead to emergency manoeuvres taking place leading to a higher potential for crashes. The following images provide an example of such failure. First of signs shown in indicate city centre and Seattle in the same direction and lane.

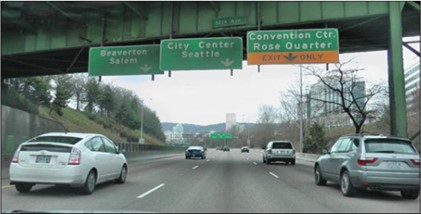

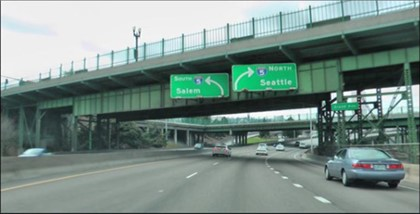

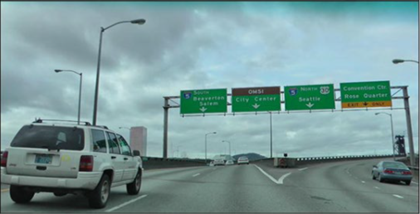

The second set of signs shown in Figure 8.33 are located 600 feet after the first signs and provide a different message. The second set of signs provide no mention of City Centre or Beaverton, placing additional workload demands on drivers and additional processing time. Furthermore, the bridge obstructs the view of upcoming interchanges and horizontal curvature, and the location lacks symmetry and the offset visual opening may lead the driver to the left.

The final set of signs (Figure 8.34) are inconsistent with the previous messages. Additional processing time is required to decipher messages. Visibility is challenging because of the rise in vertical grade in combination with horizontal curvature and the road splitting to the right and left. All these elements require additional steering input and processing time. The set up to the curve may be problematic because of confusion. The complexity may lead to sudden braking and steering due to late actions being taken.

The previous example highlights the potential for human error when expectations are violated. In the following we discuss other important human factors element to consider in reducing workload demands for drivers.

Expectations are used to help the driver prepare themselves to respond to future driving tasks, which in turn improves driver behaviours. Predictability allows for a lessening of cognitive efforts needed to process information. In a sense, the driver is programmed to a set of behaviours that are processed quickly and efficiently. While we often think of expectations of drivers, setting and providing for clear expectations is beneficial to those walking and cycling equally as it is towards the driver.

Expectations are created through design and operational consistency. Consistency allows for prediction by the road users, and it provides coded rules and relationships within the road environment (e.g., through common stop signs, or geometry, lane markings being the same or very similar), all of which lead to improved road user response.

Expectations can be enhanced by well-designed traffic control devices based on the following principles of primacy, spreading, coding and redundancy are discussed.

Principle of Primacy - Determine the placement of signs based on the importance of information, and by placing the information where it is most useful and beneficial.

Principle of Spreading - Road users need time to process information. Therefore, all the information cannot be placed very closely or together. Signage needs to be placed in a manner that provides information in smaller processible parts to reduce information overload.

Principle of Coding - Communication through multiple means is beneficial. At stop signs, one will often see stop bars, or additional pavement markings requiring a stop. In some systems, audible signals provide redundant information on the moment of crossing, in addition to the simple pedestrian or bicycle crossing signal.

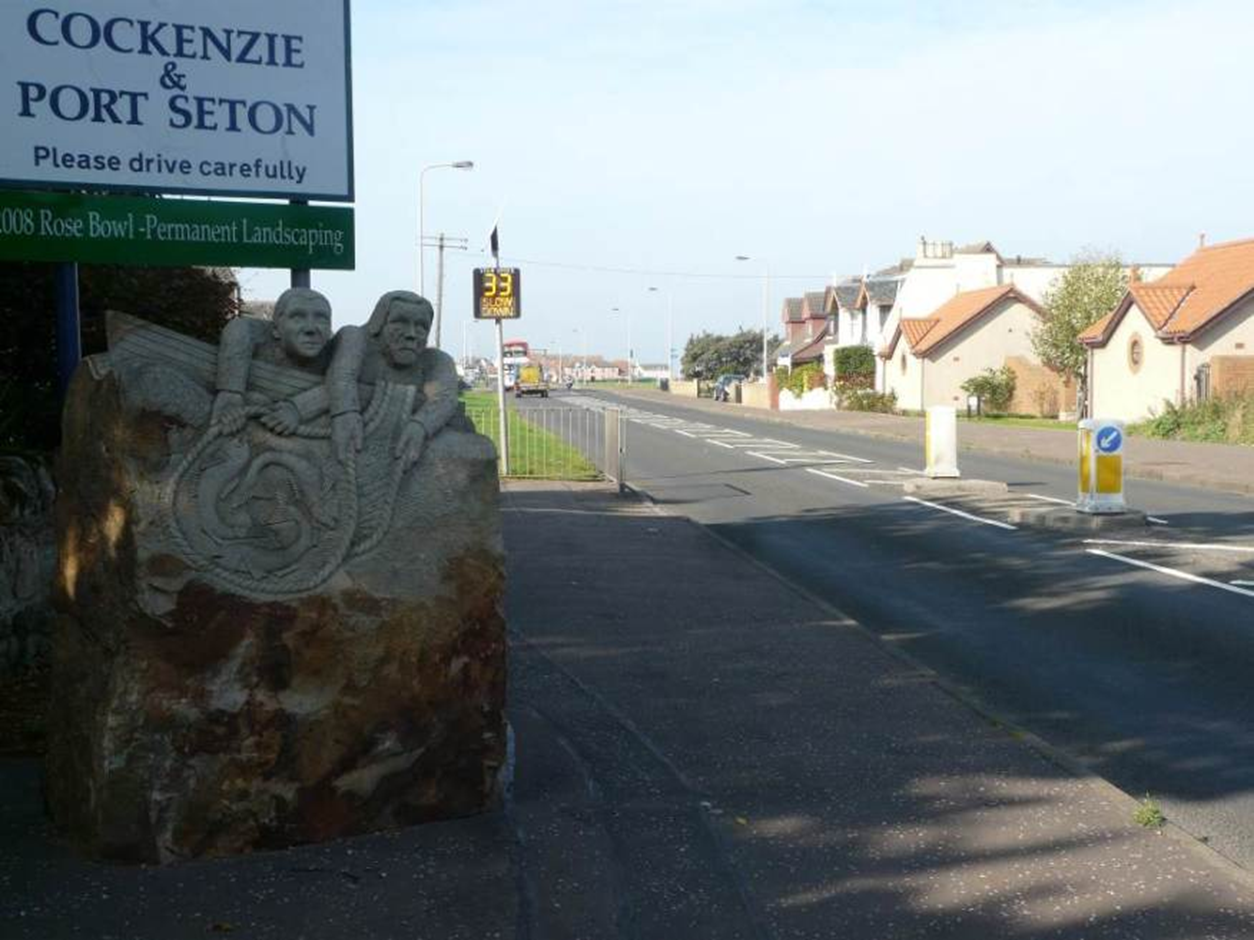

The case study from Portugal, shows the use of low-cost engineering measures and law enforcement to change driver behaviours.

COMMUNICATION WITH ROAD USERS

Messages relating to regulatory requirements, warnings of hazards, directions, and other useful information can be conveyed to drivers and other road users by a number of means. These include:

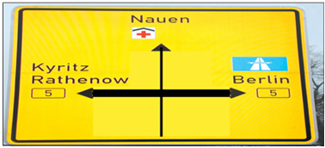

• Signs – static or changeable electronic signs, using words, pictograms or diagrams showing directions.
• Signals – at intersections, pedestrian crossings, and railway level crossings, and which cater for particular vehicle types e.g. buses, bicycles, emergency vehicles.
• Road markings – these are a highly intuitive way of conveying messages, such as the path to follow, areas to keep off, and points at which to stop.
• Delineation – guide posts and retroreflective pavement markers have an important role to play in providing guidance in poor weather or at night. Pavement markers generally supplement the information provided by line marking.

The PIARC HFPSP guide discussed in Introduction includes actions to improve delineation or signage as possible remedial treatments for all of the three key requirements mentioned above, usually as a corrective measure to bring about a satisfactory resolution of the issue, or as a warning to indicate a potentially hazardous situation. Human factors considerations are critical in the design and provision of these treatments. The principal characteristics to be considered are:

• Conspicuity – is the sign easily noticed?
• Size and position of devices in relation to the required decisions or actions – e.g. Is the traffic control device sufficiently in advance of the required decision or driving action to allow the decision to be made or the driving action executed in an unhurried manner? These issues have to be considered at each site, initially by the road design team, and subsequently by the road manager during the road’s operational life.
• Visibility – e.g. Does the design of the sign allow it to be easily read? Are signs or line markings faded or worn away so much that they are no longer effective? Are they still reflective at night? Checking and inspection to ensure visibility is a matter for the road manager. While physical measurements are the most reliable guide to the condition of traffic control devices, a well-managed programme of regular inspections by experienced personnel who are trained to make consistent assessments can be an acceptable basis for managing the condition of traffic control devices.
• Comprehensibility – e.g. Can the signs (especially symbol signs) be readily understood by road users? The design of nearly all signs is specified in the standards or guidelines of individual jurisdictions; some of these designs comply with worldwide practice, some have proved effective over a long period of time, and newer signs may have been subject to rigorous testing before they were included in the standard. Difficulties can arise when new signs are required to cover unusual situations and the proposed signs are not adequately tested on road users.
• Credibility – e.g. Are the messages they convey believable? This depends very much on how they are used in the local context. Overuse of signs can lead to them being widely disregarded. Consistency in the use of line marking, delineation and signing over lengths of road is essential in establishing the credibility of the system.

Note that a Safe System is not created solely by communication with road users. However, clear indications of the expected driving actions, especially speed choice and clear warning of hazards, can do much to reduce the number of collisions and to mitigate the severity of those that do occur. Therefore, signing that matches user's needs human factors make important contributions to achieving a Safe System. It will have a critical contribution to crash reduction on road systems that fall short of Safe System requirements.

The case study from Slovenia highlights the use of human factors in road design.

SPEED MANAGEMENT

HOW SPEED MANAGEMENT WORKS FROM THE POINT OF HUMAN FACTORS

Speed has a significant effect on safety – it influences crash severity and reduces the anticipation and response time available for a given sight distance. The correlation between crash severity and speed follows from the laws of physics. At higher speeds, the kinetic energy released in a crash increase with the square of the speed and the changes of speed experienced by those struck by or occupying the vehicles involved increase with speed. Small changes in speed have a significant effect on energy. So, it is not surprising that increased speed is considered as the biggest problem in road safety. In a lot of cases, inappropriate speed can be attributed to driver’s spatial perception on the road environment. As explained in the PIARC HFPSP the chosen speed depends on the interaction of human information processing and decision making on one hand and features of the road and its environment on the other hand. Modern science shows that the choice of speed, as well as the choice of position on the road, is mostly a subconscious process.

Most of the variables of the Human-Road Interface relate to physiological and neuronal mechanisms and affect the speed subconsciously. The following variables influence drivers speed and fatigue and therefore can also be used for an effective speed and fatigue management:

1. The optical density of the field of view is a function of the number of objects that contrast with the background. A very small number of contrasting objects leads to monotony and both reduced performance and reactivity. To avoid monotony, the driver subconsciously changes his driving behaviour in order to increase information input: he swerves, brakes or – in most cases – increases speed. Consequently, it is desirable to achieve an optimal level of optical density to support the correct choice of speed and to avoid fatigue (Herberg et al., 1994).

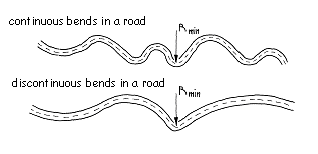

2. Also, the curvature of the road influences speed. A sinuous swinging alignment leads to an increase in attentiveness and a decrease of speed (Richter et al., 1998). This can be explained by the increase of workload to steer the vehicle and an increase in information from the balance organs that react to the change of position and curve acceleration. So, this feature also prevents the driver of fatigue that arises from a straight, monotonous road course.
3. Research also suggests that there is an optimal road width from a speed environment perspective. Drivers increase speed on very wide roads (>8,00m) and also on narrow roads (<7,50m). In addition, reaction times are best on roads within this range. (Zwielich et al., 2001). This is possible because the activation of driver’s neuronal system has an optimum in this case and prevents him from task determined fatigue.
4. It is proofed that the visible amount of road’s surface influences speed. It is a function of both dimensions: width and length of the road surface. The more of the surface that is visible – such as long straight sections or wide roads – the faster the driver will drive (Klebelsberg, 1963; Cohen et al., 1997). In combination with all other findings above it suggests realising a curvy design instead of a design with long straight sections and stretched curves. It allows also the conclusion that a broader road should have a higher curvature than a narrow road.
5. If the driver failed to identify a critical location that requires decreasing speed like a change of road’s function, a crossing, or other demands, they will drive with inappropriate speed. So maybe they were not able to perceive the need to slow down. In summary, missing references from road and the road surrounding, optical illusions, misperceptions of curves, exits, crossings or other situations can be also cause for the inappropriate speed. This can be easily corrected with Human Factors design practice as described in PIARC HFPSP.

The following case studies from France, Italy, Singapore and Sweden all highlight different techniques and reasons for speed management.

TRAFFIC CALMING

Traffic calming is the general term given to engineering techniques for encouraging lower speeds and now includes a variety of well-documented treatments. The Institute of Transportation Engineers has a website that provides a comprehensive overview of traffic calming measures. Fact sheets are available for some of the most widely used types of devices, i.e.:

• Devices that rely on vertical displacement – humps, flat-top platforms (speed tables), and raised platforms at intersections.

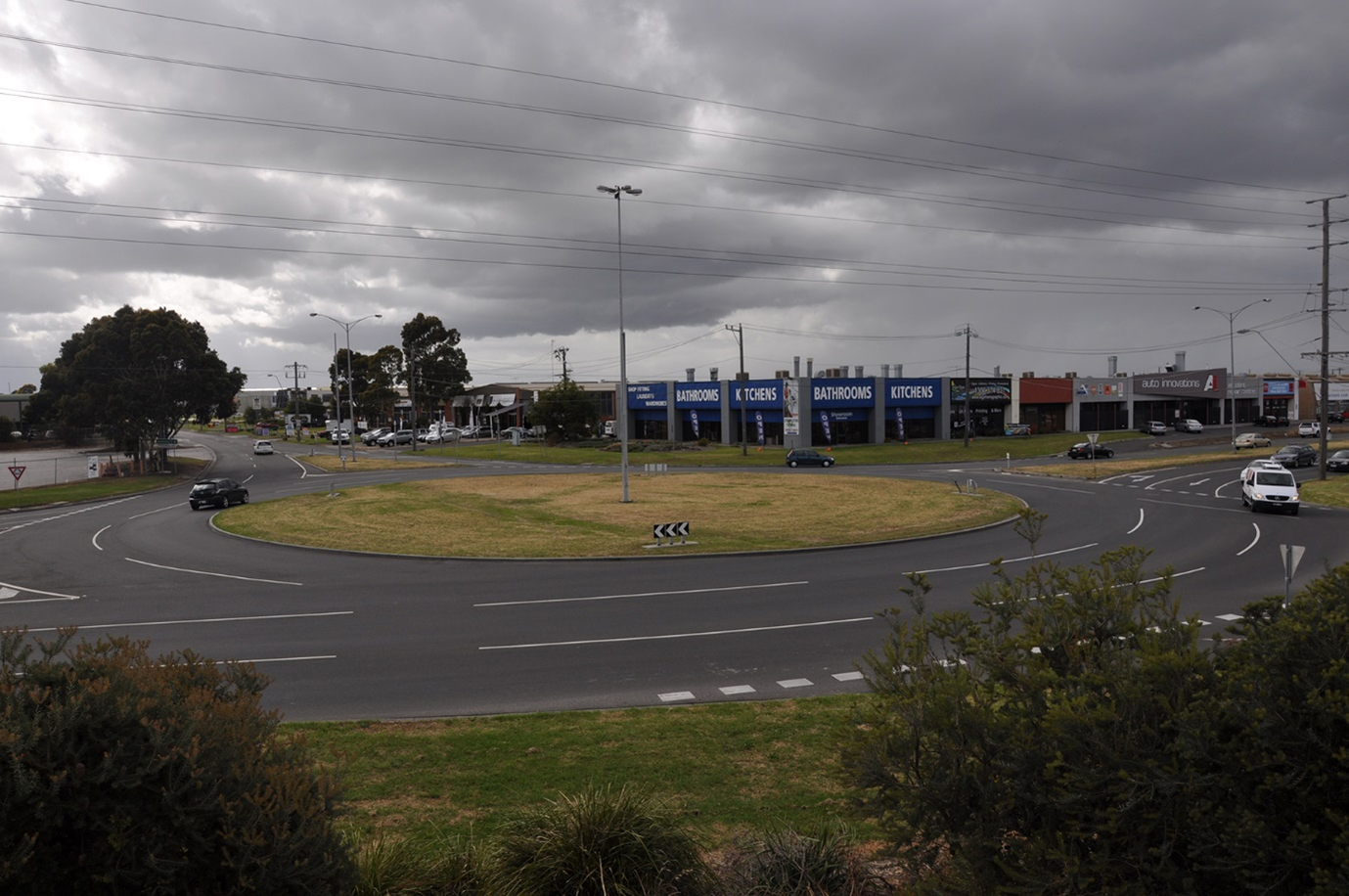

• Devices that rely on lateral displacement – chicanes and mini-roundabouts (neighbourhood traffic circles).
• Devices that rely on road narrowing – choke points and central islands.
• Street closures.

The website also has links to areas dealing with other types of treatments such as kerb extensions, refuge islands, raised crosswalks and rumble strips; and links to topics such as speed reduction, crash frequency reduction, and reductions in cut-through traffic movements.

From the Human Factor point of view, they trigger the fixation in the nearer field of view and guide the attention to the right places, or they break the straight road axis and with this also the straight view axis that increases speed. In case of road narrowing the measures increase the difficulty of driver’s task to hold the balance on a narrower road. That’s why they have not only a physical, but first an optical stopping effect.

Traffic calming principles have been widely applied in the establishment of low-speed zones in residential areas. This concept originally emerged in the Netherlands as the ‘woonerf’ or ‘living zone’; it has since been adopted in several countries under various forms. The key success factors are that the road network must carry low traffic volumes, the completed scheme must not be able to be traversed quickly, and the appearance of the streets should be changed.

Findings from 40 different cities across Europe, including Brussels, Paris, and Zurich, showed that reductions in speed limits significantly enhanced road safety by reducing both the risk of crashes and the severity of those that occurred. On average, implementing 30 km/h speed limits in these European cities resulted in a 23% decrease in road crashes, a 37% reduction in fatalities, and a 38% drop in injuries. (Yannis & Michelaraki, 2024).

Combinations of treatments such as pavement markings, road narrowing, and signage have been used effectively to reduce the speeds through settlements. A report from the UK Department for Transport provides a comprehensive summary of research on traffic calming (Department for Transport, 2007), including gateway treatments (Figure 8.35). Low-level gateway treatments were found to reduce speeds by less than 5 km/h; more substantial treatments by up to 11 km/h; and the most substantial treatments, which involved narrowing of the carriageway, by up to 16 km/h.

Makwasha and Turner (2013) found speed reductions associated with gateway treatments in New Zealand. Consistent with previous research, they found that speed reductions were greater at pinch point gateways where the roadway had been narrowed compared to gateways that consisted of signage alone. Consistent with speed reduction data, there was a 41% reduction in fatal and serious injuries at pinch point gateways, but small increases in crashes at the ‘sign only’ gateways. This agrees closely with earlier work by Taylor and Wheeler (2000) in the UK, which found a 43% reduction in fatal and serious injury crashes for gateway treatments alone, but reductions of 70% in these crashes when accompanied by downstream traffic calming treatments.

A detailed hypothetical example of how a gateway treatment might be provided is discussed in the PIARC HFPSP guide. Gateways are also used at the entry to lower-speed zones within urban areas. However, as speeds are generally low at these points anyway, their effectiveness can be hard to evaluate (Department for Transport, 2007). The case study from Germany shows an example of bundling the motorized vehicles to help organize traffic flow.

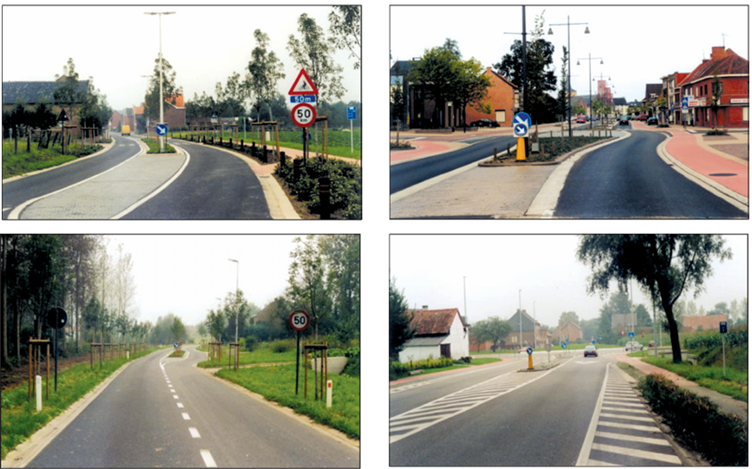

THE ROLE OF ROAD HIERARCHIES AND SELF-EXPLAINING ROADS

As mentioned in previous sections, road and traffic engineers have an effective array of techniques and devices available to provide information to the road user. If the basic road design creates a road environment and Gestalt that give consistent impressions on how to drive on that type of road, the speed choice will be appropriate. This concept is generally referred to as a ‘road hierarchy’.

‘Self-explaining roads’ require a holistic approach in designing the road system and its immediate surroundings to make the required driving actions obvious to the driver. The European Commission website describes self-explaining roads in the following terms:

‘The aim is that different classes of roads should be distinctive, and within in each class, features such as width of carriageway, road markings, signing, and use of street lighting would be consistent throughout the route. Drivers would perceive the type of road and ‘instinctively’ know how to behave. The environment effectively provides a ‘label’ for the particular type of road and there would thus be less need for separate traffic control devices such as additional traffic signs to regulate traffic behaviour.’

Roads have different functions which require different traffic speeds and other driving actions, e.g. readiness to deal with cyclists and pedestrians (including young children). If these functions can be made explicit by the design and features of the road, it should be much easier to pre-programme the drivers to behave appropriately. A road that is truly self-explaining would make other aspects of driving demand obvious, such as which traffic stream should give way to another, when the driver is approaching an intersection or a curve, where pedestrians are likely to cross the road, and where the driver should position the vehicle to make a turn across a traffic stream. A self-explaining road would require few signs or line markings as the required driving actions would be conveyed intuitively by the appearance of the road.

In the Netherlands, where the concept originated, four categories of road seem to be sufficient to cater for all needs (Theeuwes & Godthelp, 1995); these are:

• motorways,
• major inter-city roads,
• rural roads to connect residential areas to shopping and services,
• and woonerfs (or traffic-calmed residential zones).

Other countries may find that they need more categories to cover their full range of road types (e.g. rural access roads, urban collector roads). The important point is that roads can be designed to create different expectations about how road users should act on them.

A recent application of self-explaining roads principles in a suburb of Auckland, New Zealand demonstrates how appropriate design – in this case retrofitting an area with planting and other low-cost measures – can pre-programme the right driving actions. After implementation, average speeds were lower on local streets but unchanged on collector roads. In both cases, the variability of speeds was reduced after implementation (Charlton et al., 2010). On local roads, vehicle numbers were reduced, vehicle lane keeping was less consistent, and signalling was less frequent. Also, pedestrian numbers increased, and pedestrians were less constrained in their movement patterns; however, these changes were not evident on the collector roads (Mackie et al., 2013). The authors interpreted these changes as indicating that a more relaxed, informal environment had been created on the local streets, consistent with the objectives of the project. These changed driving actions were accompanied by a 30% drop in crashes and an 86% reduction in crash costs.

Under a Safe System, road authorities must look to establish a clear road hierarchy that effectively manages the potential conflicts between different road users. Ideally, each road should be defined as having either a function that facilitates high traffic flow or one that manages exchange between different road users, but not both. This then enables a (long term) planning and design framework that supports good neighbourhood planning, safe road layouts, and safe speeds to ensure road users are sufficiently physically protected.

Creating a clear functional hierarchy in the road network is an important planning tool and helps to define movement versus place priorities as well as appropriate Safe System infrastructure responses. Roads with a movement or flow function can accommodate higher volume, higher speed traffic but require separated facilities along the corridors if pedestrians and cyclists are present and intersections should be treated with roundabouts or traffic signals with raised safety platforms to manage speeds at crossing points. In areas or on roads where different road users mix, traffic calming measures such as lane narrowing, chicanes, speed humps, raised crossings, and landscaping are needed to create a lower speed environment. This includes establishment of large traffic-calmed areas where through traffic is kept out, or where vehicles use is discouraged except when people need to be inside this region.

The Movement and Place Framework is increasingly used to guide transport planning in delivering a more integrated transport system to improve customer outcomes and support a range of user groups. Work is already underway in some jurisdictions to integrate Safe System principles and treatments within the Movement and Place Framework to safely cater for all road users and enable more proactive and lasting road safety benefits. This is particularly important for the liveability of places and vibrant streets, where greater numbers of pedestrians and cyclists gather. They are inherently more vulnerable in crashes and, in some environments, highly exposed to the risk of crashes.

Austroads (2020) outline specific safety infrastructure measures for pedestrians and cyclists aligned to Safe System principles within a Movement and Place Framework.

The implications of self-explaining roads are especially profound for LMICs. The evidence is that drivers pick up powerful messages about the appropriate way to drive from the cues in the environment. Developments affecting parts of the road system that have customarily been used for social or commercial purposes should therefore be handled with particular care. If it is possible to retain the social or commercial function, then care should be taken to separate through traffic movements from the mixed activity area and ensure that a high-speed environment is not imposed on it. If it is not possible to retain the social and commercial functions, then a suitable alternative site for these activities should be found, and the new road facility which replaces the former mixed activity area and should be clearly identifiable as primarily a traffic facility, to improve driver behaviour.

Uncontrolled access and unplanned communities can also create uncertainty and potential hazards for all road users. The report ‘Land use and Safety: an introduction to understanding how land use decisions impact safety of the transportation system ’ (PIARC, 2016c) discusses how land use (e.g. density, use, mix) and typical transportation factors (functional classification, context classification, transit availability, speed and access control/management) can affect safety outcomes. The report provides examples of where and how land use and transportation decisions are made and explores several tools and techniques to improve safety in transportation and land use interactions.

ROAD-BASED FATIGUE COUNTERMEASURES

Addressing road-based fatigue is a key component of increasing road safety. Fatigue is well known to reduce and keep drivers from reacting to hazards. The outcome of this is the potential to increase crashes. In 2016 PIARC produced the report ‘The Role of Road Engineering in Combatting Driver Distraction and Fatigue Road Safety Risks ’ (PIARC, 2016a). This important document highlights the problem with fatigue and distraction and outlines road safety countermeasure to combat this ongoing issue.

There is a clear distinction between fatigue, which occurs with time spent on a task, and drowsiness, which varies according to the time of day and how much sleep a person has had. The terms are often used interchangeably as they often occur together and have similar debilitating effects on driving. A review for the UK Department for the Environment, Transport and the Regions (Jackson et al., 2011) concluded that fatigue affects driving skills in three ways:

• It increases the frequency of errors (e.g. the number of times a driver intrudes on a neighbouring lane).
• It increases the size of errors (e.g. the distance that a driver intrudes on a neighbouring lane).
• It increases the variability of errors (e.g. reduction in the amount of time a driver drives in the centre of the lane).
• It increases driver’s tendency for subconscious speeding to get ensure a normal activity level of the central nervous system although the workload decreases because of monotony of the driving task

The most effective ways of managing fatigue for professional drivers appear to be through workplace fatigue management programmes, supported by programmes to ensure that drivers come to work well-rested by addressing lifestyle issues. In-vehicle fatigue monitoring systems that analyse driver behaviour and warning signs to determine the onset of fatigue have the potential to be a highly effective tool for detecting the early stages of fatigue in drivers and minimise the likelihood of incidents. But for common drivers in general the road design has to ensure that the basic Human Factors principles of managing speed are realised in road design.

Roberts and Turner (2008) identified specific areas where infrastructure-based countermeasures might be effective. These include:

REST AREAS

Opportunities to rest are likely to be beneficial. It is well-established that short periods of sleep can restore the performance of fatigued drivers. However, there is uncertainty about the location of these facilities in relation to high-risk sections of road, and about the best type of facilities to be provided at different locations.

MONOTONY REDUCTION TREATMENTS

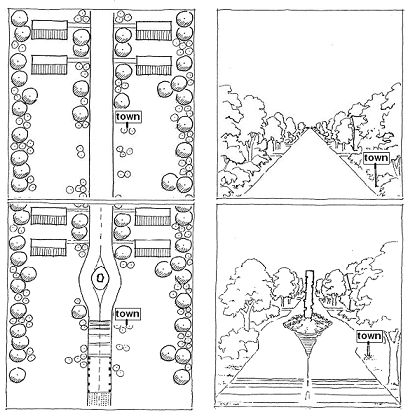

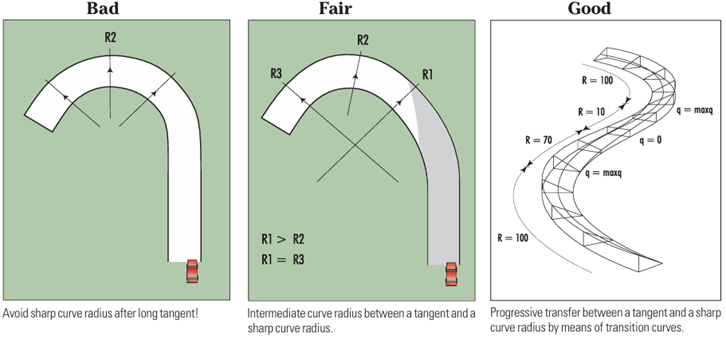

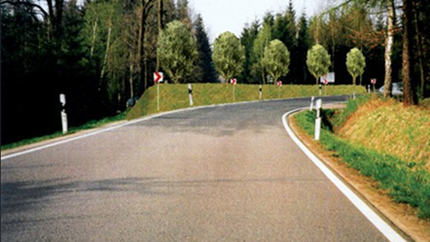

Monotony reduction was thought to be worthwhile, but there was uncertainty about what type of monotony reduction would be effective because there is a lack of empirical and experimental data until yet. But it is well known that long straight roads without sufficient curvature are creating monotony-based fatigue to drivers. Note that the PIARC HFPSP guide suggests the creation of ‘sinuous, rhythmic road alignments’ (i.e. gently winding roads) to counter monotony by providing a constantly changing visual field and an activation of the equilibrioception, especially the proprioceptive system. It also suggests that the number of brightness and colour contrasts in the lateral periphery of the field of view should be increased as also the fixation point should be limited in the nearer depth of the field of view. This can be achieved by changed height and kind of vegetation, special markings, coloured pavements, changes of contrasts in the vertical scenery of buildings, in tunnels and similar optical countermeasures against monotony.

SIGNAGE AND ROAD MARKINGS

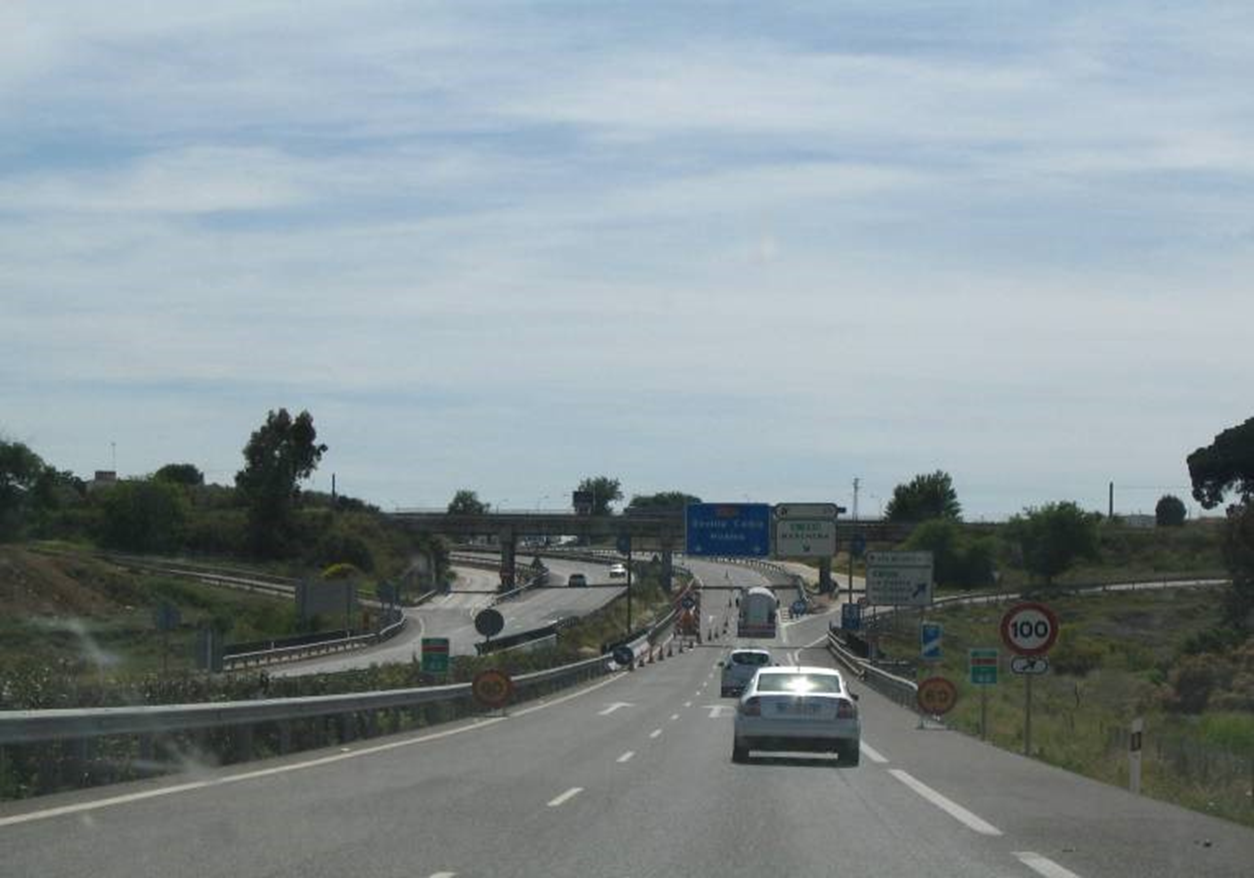

Signs and road markings increase the number of brightness and colour contrasts and are supportive against road triggered fatigue. They can also draw driver's attention to areas of high risk of fatigue crashes and advising of opportunities to rest at towns or rest areas were thought to have potential.

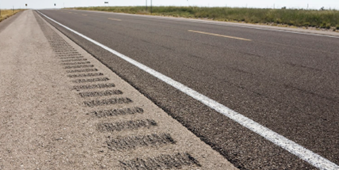

AUDIBLE LINE MARKINGS OR LONGITUDINAL RUMBLE STRIPS

Audible line markings are raised thermoplastic lines which create a whirring sound when driven over, alerting the driver that the vehicle is drifting onto the shoulder (when applied as an edge line) or across the centre of the road into the opposing lane (when applied as a centre line). These have proved to be highly effective in reducing crashes, but generally do not generate a sufficiently loud signal to be effective for trucks. Also, they are to be avoided near schools, hospitals and residential areas. In countries where there is widespread use of asphalt construction on rural roads, an equivalent treatment can be produced at lower cost by creating depressions in the asphalt by means of a special roller, or by milling grooves in the road surface. This is not possible when the road is of sprayed seal construction , which is typical of many roads in LMICs and HICs with low population densities. Depressions are also to be avoided on roads on which ice frequently form. Audible line markings can also be applied to concrete roads, either by the application of thermoplastic markings or by milling grooves in the road surface.

Reaction time depends upon the nature of the message. Drivers react faster to audible signals than to visual signals (Table 8.3).

They also react faster to a combination of audible and visual signs than to a single signal.

Rumble strips have been shown to be very effective in warning drivers that they are leaving the traffic lane. According to the iRAP Road Safety Toolkit, the Potential Casualty Reduction for rumble strips is estimated to be 10-25%.

CLEAR ZONES AND BARRIERS

If these other measures fail to prevent a fatigue-related collision, then clear zones have the potential to avoid serious injury. The clear zone must ideally be guaranteed everywhere. Where is not possible to have a clear zone due to an obstacle (trees, poles, signposts, etc), installing a safety barrier to protect drivers from hitting a fixed object is recommended.

KNOWING WHAT BEHAVIOURS ARE REQUIRED IN A PARTICULAR SITUATION

Even when road users have a good understanding of the road rules and traffic control devices, there may be situations or locations where they are unsure about the correct driving procedures. These situations generally arise in unfamiliar situations, e.g. when a site has unusual geometry, or where drivers find themselves sharing the road with unfamiliar things such as slow, oversize vehicles, or herds of animals being driven along the road. Ideally, a road user’s training and experience would have taught them to behave safely and wait until any unclear/unusual situation is resolved so that they can move or overtake safely. Over time, it would be hoped that situations with unusual or misleading geometry would be eliminated by the progressive treatment of hazardous locations as determined by crash records or risk analysis. In the meantime, care should be taken to ensure that correct guidance is given to all road users by means of signage, lighting, line marking and delineation. It is important to ensure that the package of guidance measures is properly understood, particularly if unfamiliar.
