8.4 ENSURING APPLICATION IN PRACTICE

Human Factors issues are not as well catered for as they should be on most of the world’s roads, including those in HICs. A number of major in-depth crash investigations were carried out in the 1960s and 1970s that implied that driving actions carried out by the road user as the main contributing factor in most crashes. More recently, it has come to be understood that many of these driving mistakes were as much due to deficiencies in the road system as to failings on the part of the driver. These included crashes due to inadequate sight distance, poor lighting at critical points, poor transition zones, insufficient management of the field of view as well as misguiding drivers expectations and road surfaces that provided less friction than the driver was expecting.

HICs may therefore have a large backlog of road deficiencies to rectify to ensure that Human Factors and needs of users are adequately integrated in their design standards and the practice to treat high risk locations across their networks. The same is likely to be true for LMICs. However, the road system cannot be brought up to standard unless the basic design tools – the road design standards and guidelines – take account of these issues. The PIARC study (PIARC, 2012b; PIARC, 2016c) suggests that there is a long way to go before this can be achieved.

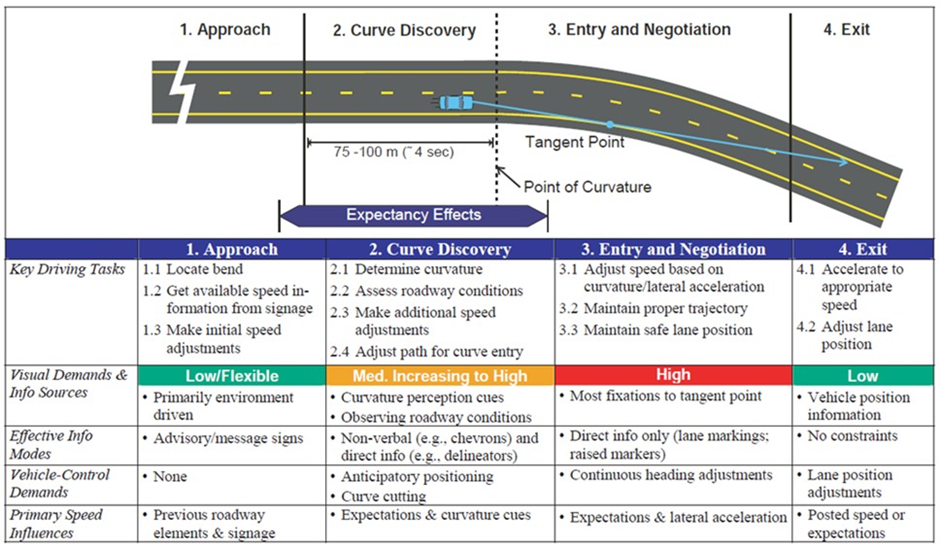

The driver demands associated with navigating a curve can serve as an example of how analysing driver tasks can be helpful in understanding how road design impacts driver performance. Figure 8.21 describes the activities that driver would typically perform while navigating a single horizontal curve (National Academies, 2012). From this example, tasks like maintaining speed and lane position while entering and following the curve are more demanding and challenging and the driver needs to pay closer attention to basic vehicle control and visual information acquisition. Task analysis identifies the key information and vehicle control elements in different parts of the curve driving task.

Figure 8.21 illustrates how and when driver demands are influenced by design aspects such as design consistency, degree of curvature, and lane width. In particular, identifying highly demanding (or high workload) components of the curve driving task provide an indication of where drivers might benefit from information regarding delineation or benefit from the elimination of potential visual distractions.

An expert Human Factors group examined the design standards from nine HICs and LMICs from across the world and systematically compared the advice and procedures in each standard with the specific Human Factors requirements which arise from the three Human Factors requirements described in the PIARC HFPSP guide (see Chapter 8.2 - Designing Infrastructure to Encourage Safe Behaviour ). Requirement No.1, giving the driver sufficient time to react, was best catered for, with the specific driver needs being fully discussed in 49% of cases. Requirement No. 2, ensuring the road provides a safe field of view, was least well catered for, the specific needs being fully discussed in only 9% of cases. Requirement No. 3, that the road matches the road users’ expectations, was fully discussed in 34% of cases.

It therefore appears that much work remains to be done to bring the world’s design standards up to a level where Human Factors issues are fully addressed and to bring the thinking of designers along with them. In lieu of design standards that embed Safe System principles. Road Safety Audits provide a valuable means of evaluating the safety performance of road designs with consideration of Human Factors issues. Case studies from Canada and Iran present Road Safety Audits.
